Neural Network

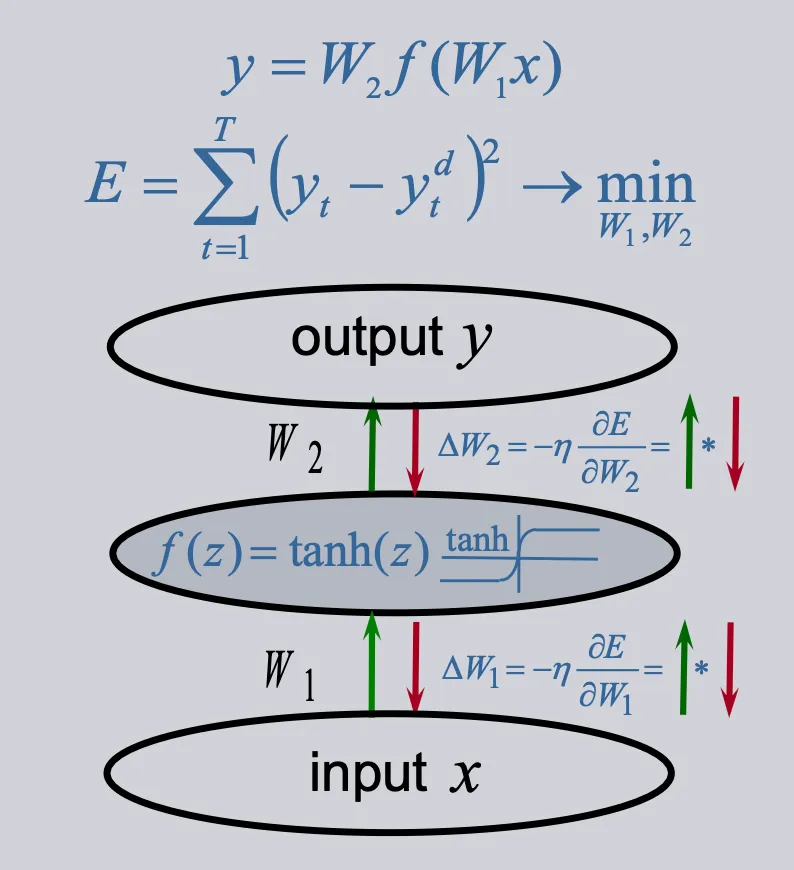

Basic Neural Network architecture

![[CleanShot 2023-11-17 at 17.49.25@2x.png]]

• Weights
• Bias Weight
  • needed to allow for general hyperplanes that do not necessarily go through the origin
  • in RNNs a missing bias weight can be corrected by one of the internal state neurons.
• Activation Function
• Backpropagation

A neural network can always be expanded by the concatenation of mutliple layers in contrast to Taylor Expansion where complexity is increased with additive terms.

Universal Approximation Theorem

Existence Theorem 3-layer neural nets can approximate any continous function on a compact domain.

Why do we need a compact input domain?

We can only use a finite number of non-linear functions to model a finite diameter of the input domain. Open sets can create singularities at the boundary which can not be modelled by non-linear functions.

For example:

• Feed-forward Neural Network
• Deep Neural Network

Specialized Networks

• Recurrent Neural Network
  • Long Short Term Memory Network
  • ECNN
  • HCNN
