Deep Historical Consistent Neural Network

A simple approach

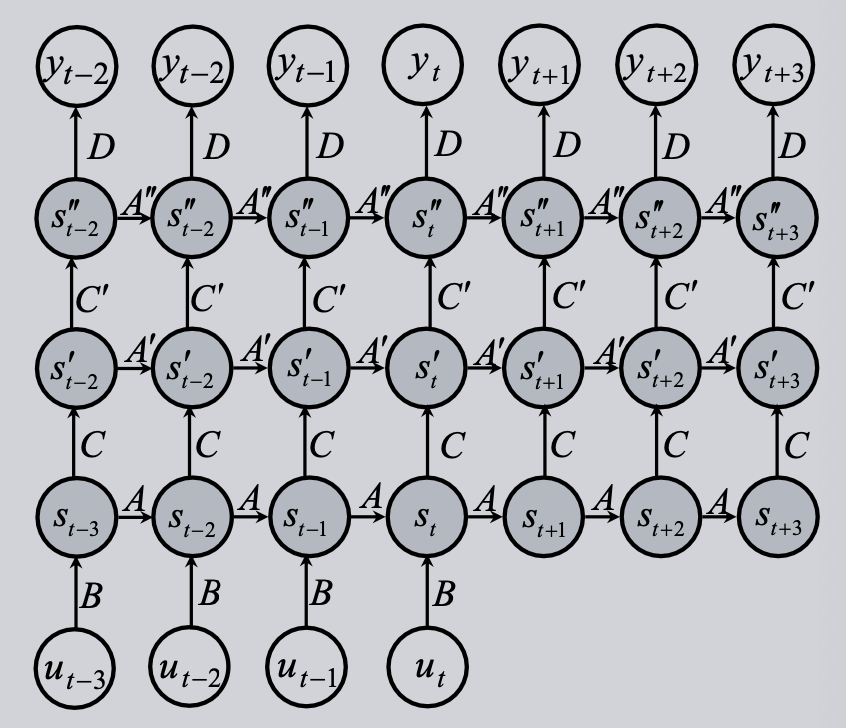

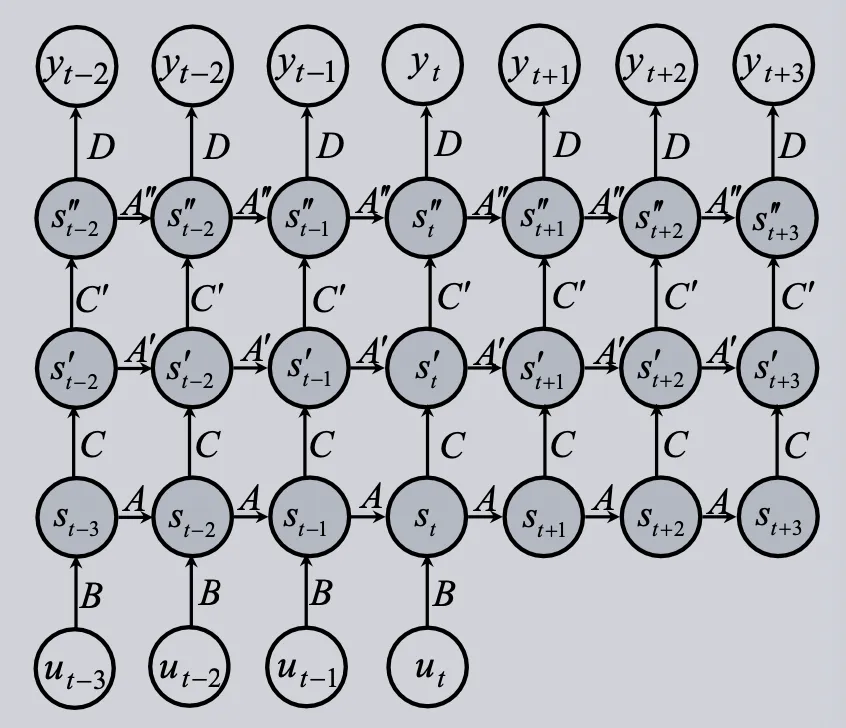

Stack multiple HCNNs and connect them via their hidden states.

Bildschirm­foto 2023-06-08 um 13.38.39.png

use the more complicated state transformation

(s′′s′s)τ=tanh⁡[(A′′C′A′00A′CA00A)⋅(s′′s′s)τ−1+(00B)ut]yτ=(D00)(s′′s′s)τ\begin{aligned} \left(\begin{array}{c} s^{\prime \prime} \\ s^{\prime} \\ s \end{array}\right)_\tau=\tanh \left[\left(\begin{array}{ccc} A^{\prime \prime} & C^{\prime} A^{\prime} & 0 \\ 0 & A^{\prime} & C A \\ 0 & 0 & A \end{array}\right) \cdot\left(\begin{array}{l} s^{\prime \prime} \\ s^{\prime} \\ s \end{array}\right)_{\tau-1}+\left(\begin{array}{l} 0 \\ 0 \\ B \end{array}\right) u_t\right] \\ y_\tau=\left(\begin{array}{lll} D & 0 & 0 \end{array}\right)\left(\begin{array}{c} s^{\prime \prime} \\ s^{\prime} \\ s \end{array}\right)_\tau \end{aligned}

to calculate the next states.
